EtherCAT Remote 32-Channel Output Module
EC-2040
Follow frequency：次
Product type：IO
EtherCAT Blade-Type IO Module
32-Channel OUTPUT, each channel supports a continuous output of up to 500?mA with built-in overcurrent automatic protection.

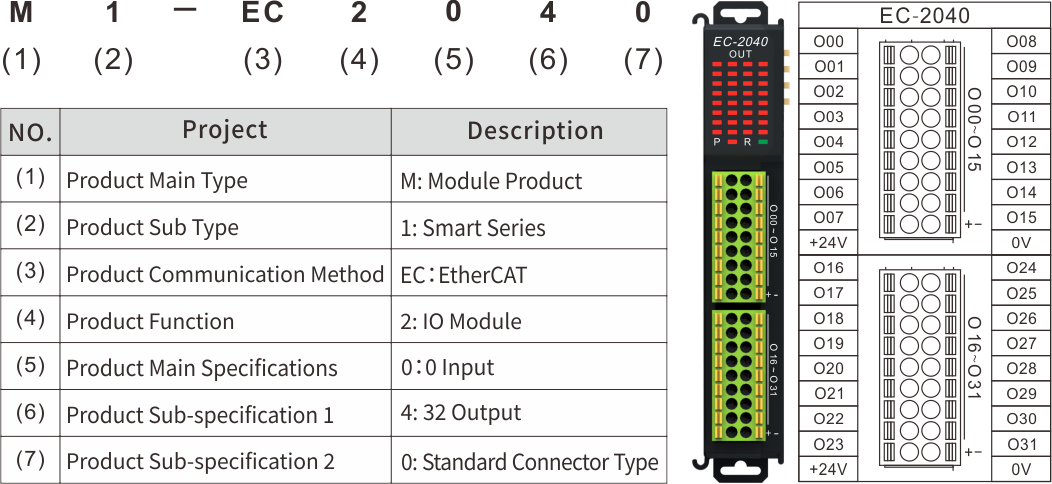

Output Connection Diagram
Item | Specification |
Task in EtherCAT System | EtherCAT Output Module |
Circuit Type | Transistor |
Output Points | 32 points (single unit) |
Endpoint Output Current | Maximum 500mA |
Output Response Time | 800 ?s |
Electrical Isolation | 1500 Vrms (power contacts/power voltage/Ethernet) |
Mounting Method | DIN rail mounting |
Dimensions | Length 21.5 × Width 119 × Height 70 mm |
Manual
Download 亿FINGER CNC_EtherCAT Remote Module_Installation Guide_CN
