EtherCAT Remote 32-Point Input Module
EC-2400
Follow frequency：次
Product type：IO
EtherCAT blade-type IO module with 32 INPUT channels. INPUT supports NPN/PNP input selection via wiring.

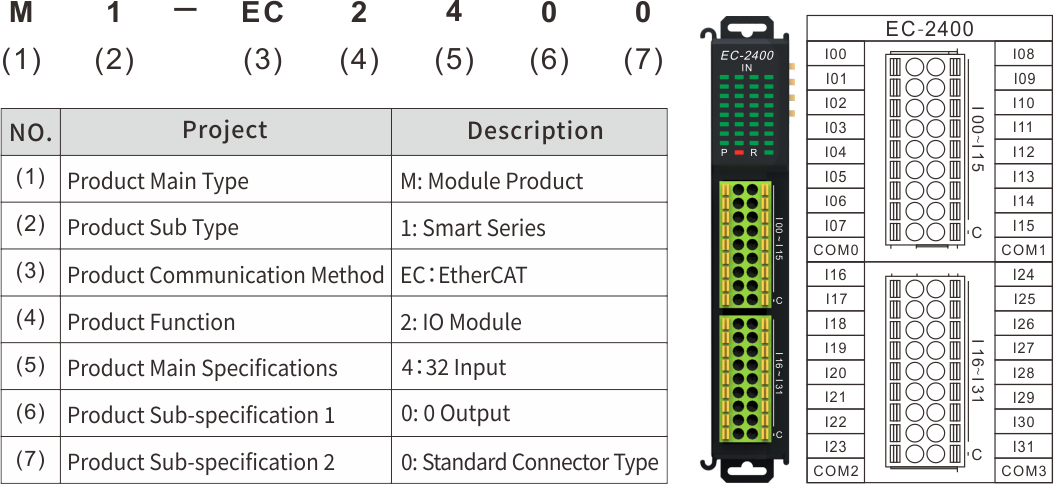

NPN/PNP Switching (Input Common Terminal Description)
※ Note: Each group of 8 inputs has an independent COM terminal for switching between NPN/PNP modes. For example:
COM0 is only valid for I00~I07
COM1 is only valid for I08~I15
COM2 is only valid for I16~I23
COM3 is only valid for I24~I31
Item | Specification |
Task in the EtherCAT System | EtherCAT Input Module |
Number of Input Points | 32 Points |
Electrical Isolation | 1500 Vrms (Power Contacts / Supply Voltage / Ethernet) |
Dimensions | Length 21.5 × Width 119 × Height 70 mm |
Manual
Download 亿FINGER CNC_EtherCAT Remote Module_Installation Guide_CN
