EtherCAT Remote Power Module

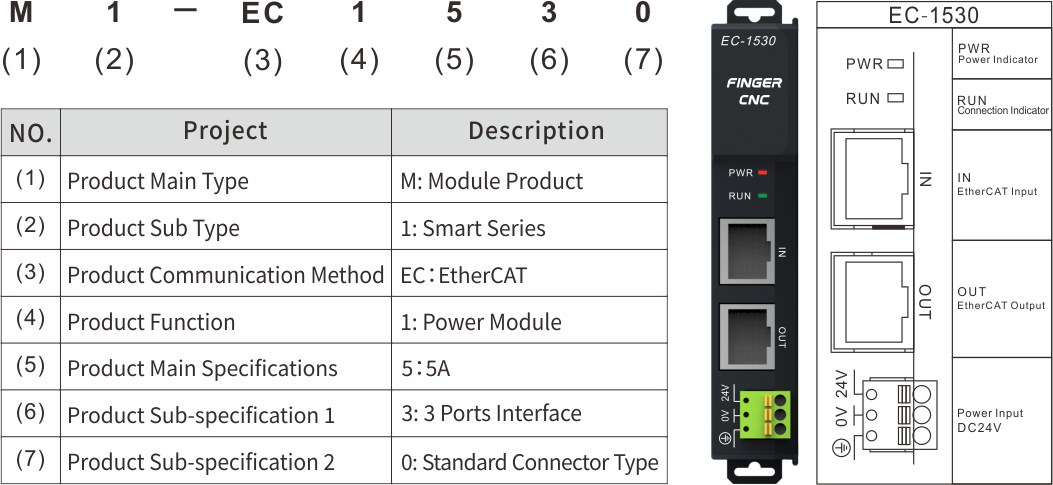

EC-1530
Follow frequency：次
Product type：IO
EtherCAT Bus Power Module
Provides a maximum continuous output of 5A with strong load capacity, supporting up to 20 plug-in modules.
Item | Specifications |
Tasks in EtherCAT System | Connect the EtherCAT Slave module to a 100BASE-TX EtherCAT network |
Communication Protocol / Maximum Distance | EtherCAT / Max. 100M (100BASE-TX) |
Data Transmission Rate | 100 Mbps |
Power Supply | 24VDC?Allowable Range: 24V ±10%?Reverse Polarity Protection: Yes |
Electrical Isolation | 1500 Vrms (power contacts / power voltage / Ethernet) |
Installation Method | DIN rail mounting |
Dimensions | L21.5 × W119 × H70 mm |
